Product Numbers:20160422100024
Price:Negotiable
Product introduction:K27inch IR touch frame
Product overview:
l A high precision infrared touch frame,through the resolution of the interpolation algorithm can be as high as 4096 by 4096.
l The mainstream system doesn’t need the driver,once plugged in,it can be used.
l Adapt to external and external linked environment.
Specification:
Size |
27” |
Ratio |
16:9 |
The material of frame |
Aluminum alloy |
The color of appearance |
Black |
Touch type |
Single-touch、two point touch |
Operating systems support |
Windows7/8/10/Windows XP/Vista/Linux/Android |
Glass |
Thickness3-5mm,tempered glass |
The interpolation resolution |
4096×4096 |
Response |
≤15ms |
The accuracy of the touch |
over 90% area(±2mm) |
Input form |
Finger,glove hand ,or Opaque objects |
Output form |
Coordinate output |
The theory of clicks |
Unlimited times |
The smallest touch objects |
5mm |
The type of the interface |
USB |
|
Operating temperature:-10℃~50℃ |
Storage temperature:-20℃~60℃ |
|
|
Operating humidity:10%~ 85% RH, no condensation |
Storage humidity:10%~ 90% RH, no condensation |
Electronic characteristics:
USB |
Terminal type |
Type A USB |
Communication |
USB-D+ and USB-D |
|
Transmission |
12Mbps |
|
signal |
+5V,D-,D+,GND |
|
Power supply |
USB |
|
Working voltage |
DC+5V±5% |
|
Operation current |
<200mA |
Reliability:
Items |
Test conditions |
Decision criteria |
Working in high |
Temperature:50℃, humidity: |
Property normal |
Working in low |
Temperature-10℃,24 hours of |
Property normal |
Storage in Low |
Temperature:-20℃,placed |
Property normal |
Storage in High |
Temperature:60℃,humidity: |
Property normal |
USB plug test |
Windows7 and Windows XP plug |
Work normally |
System restart |
Windows7 and Windows XP restart |
Work normally |
The basic function |
Signal and the line drawing |
Work normally |

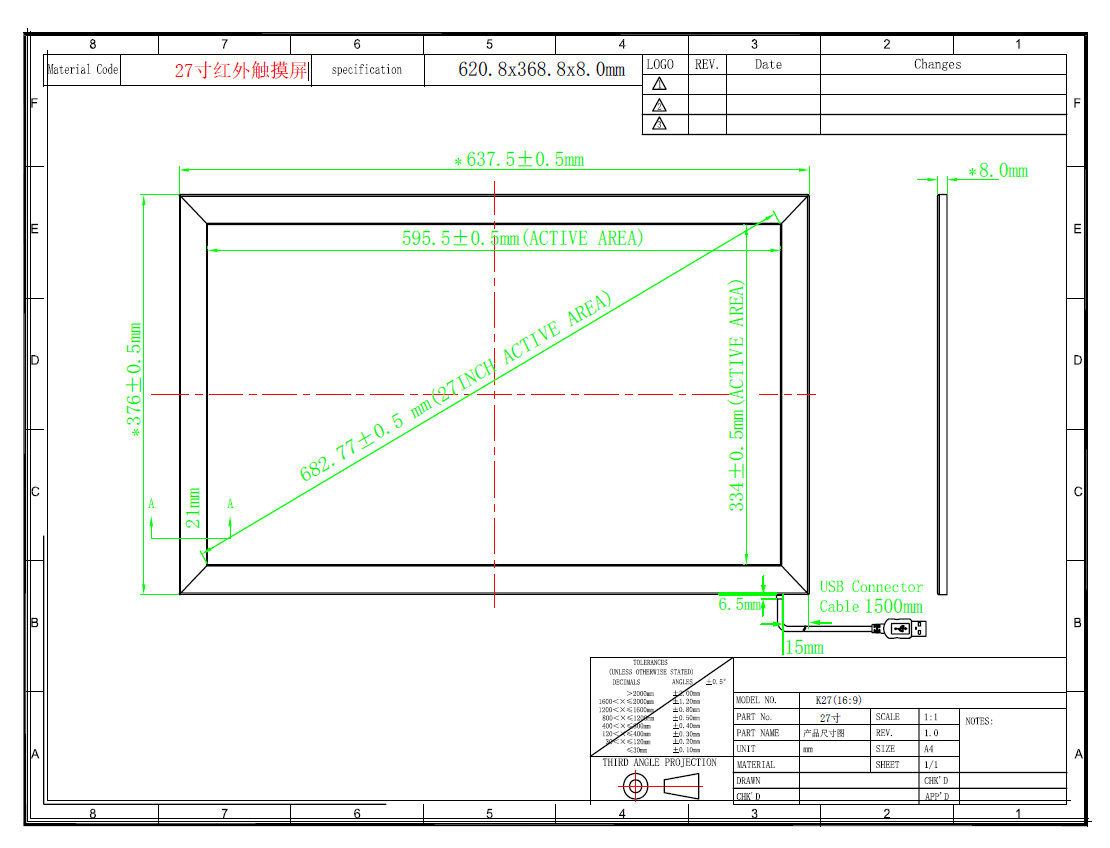

Dimension:
